INSTALLATION TUTORIAL:

SPECS:
- Glass: Sapphire (Pre-installed on cases)
- Case: Grade 2 Titanium (Buttons Pre-installed on Cases)

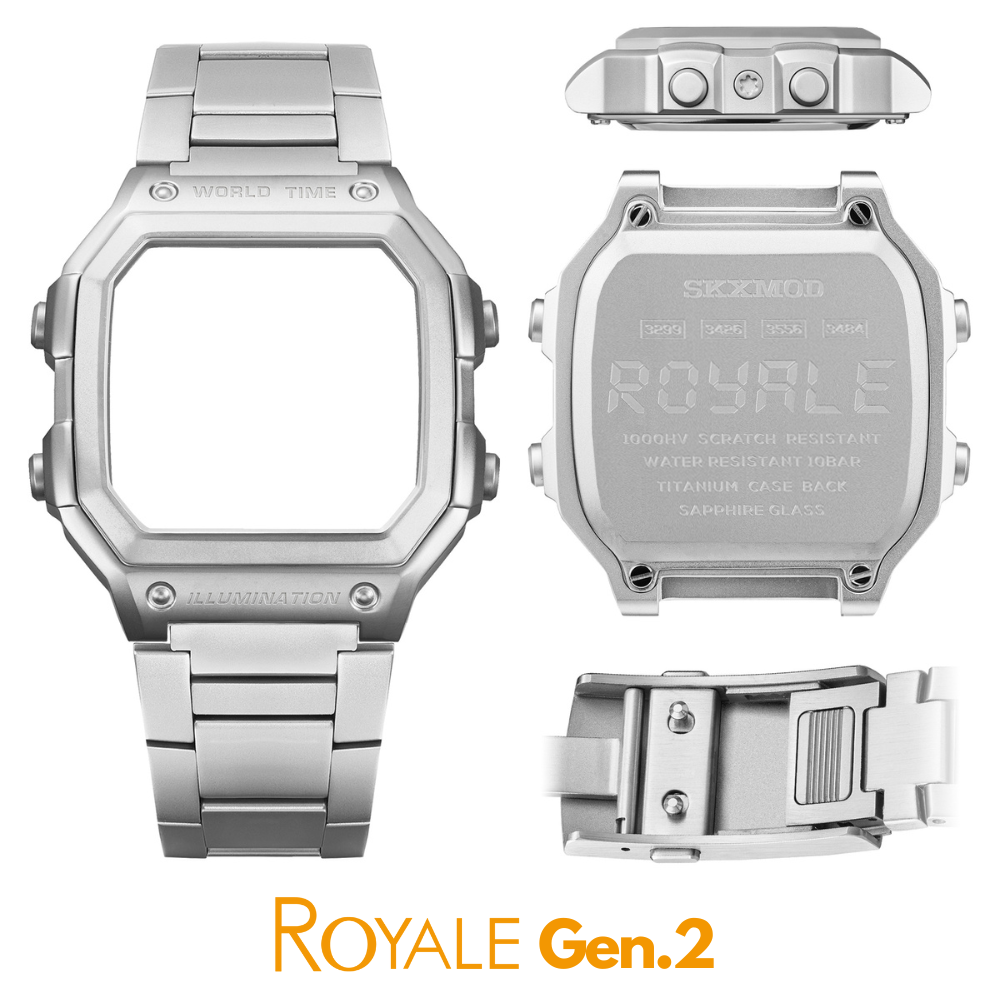

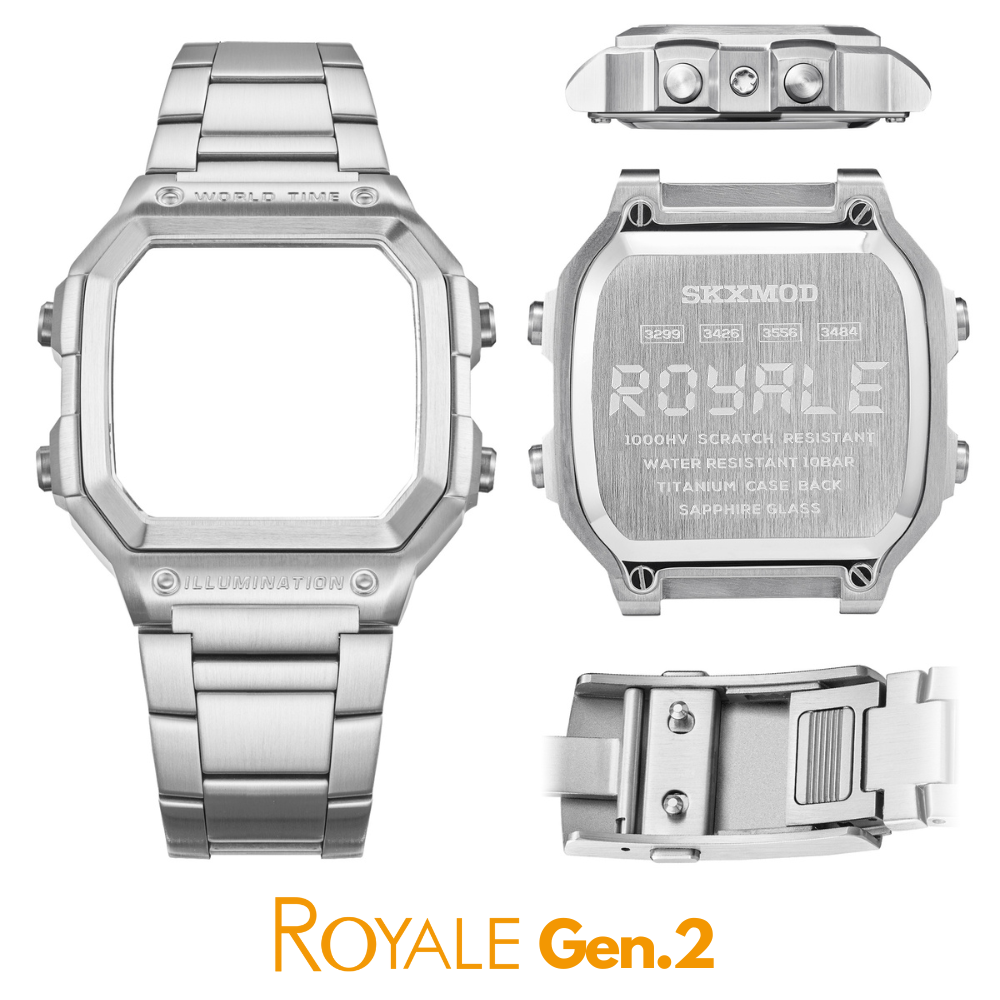

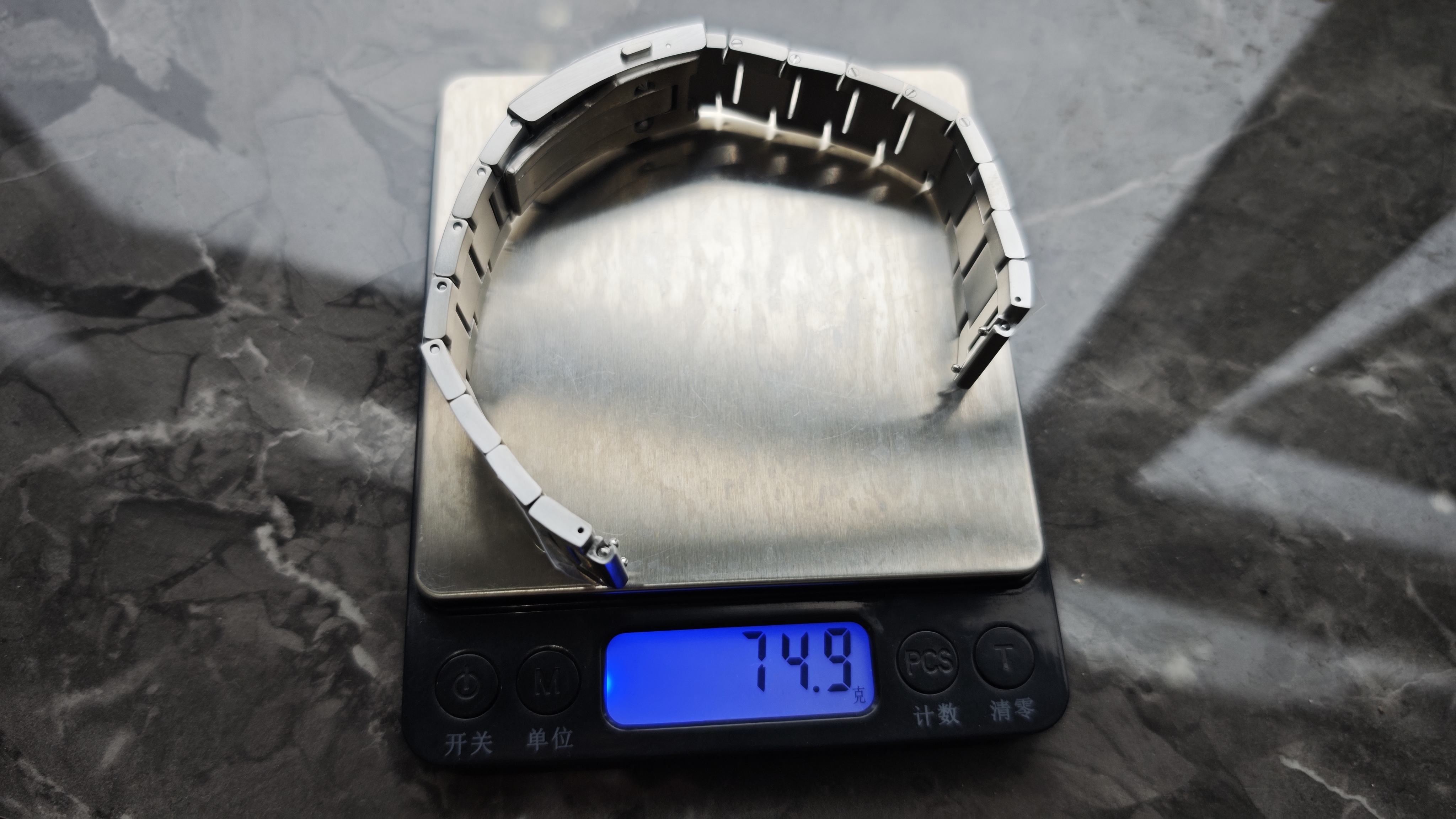

- Bracelet: Grade 2 Titanium (Milled Clasp and Swivel Joint Screws)
- Caseback: Grade 2 Titanium (Attached by Default)
- Caseback Screws: Stainless Steel (Only in Silver, Not Harden)
- Rubber Strap Pin Buckle: Stainless Steel
- Coating: IP Coated, Rated over 980HV on Vickers Hardness Test

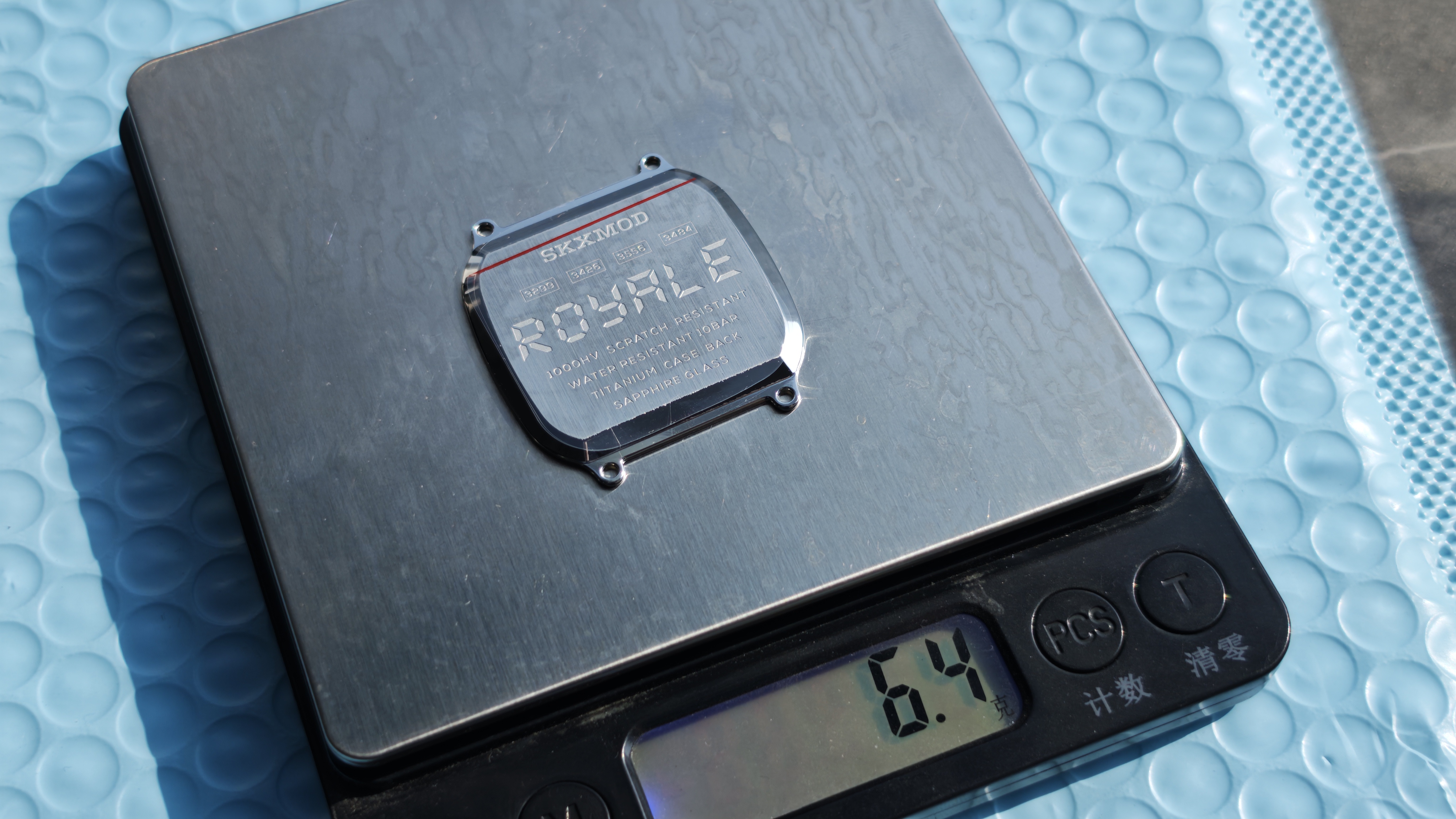

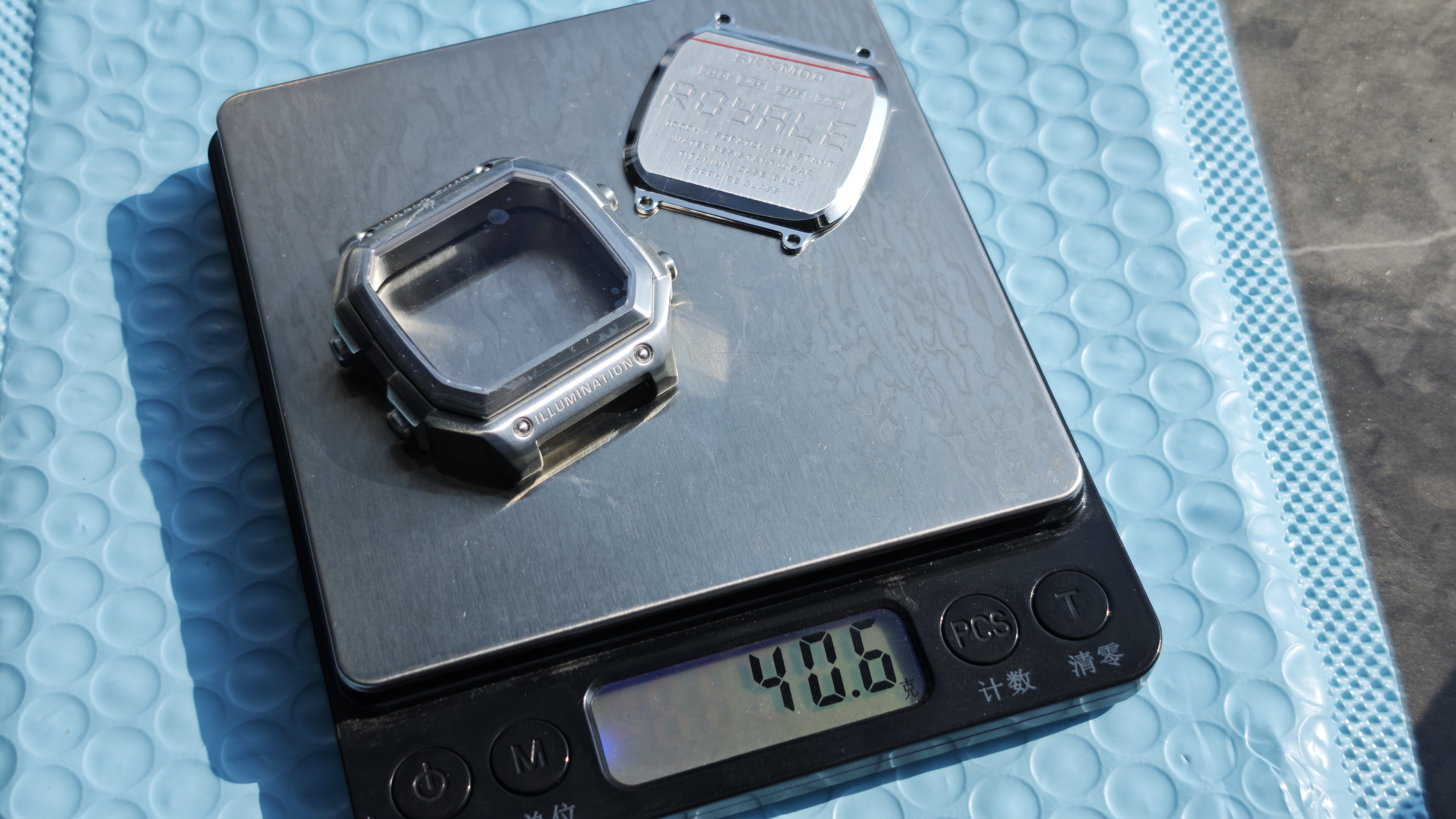

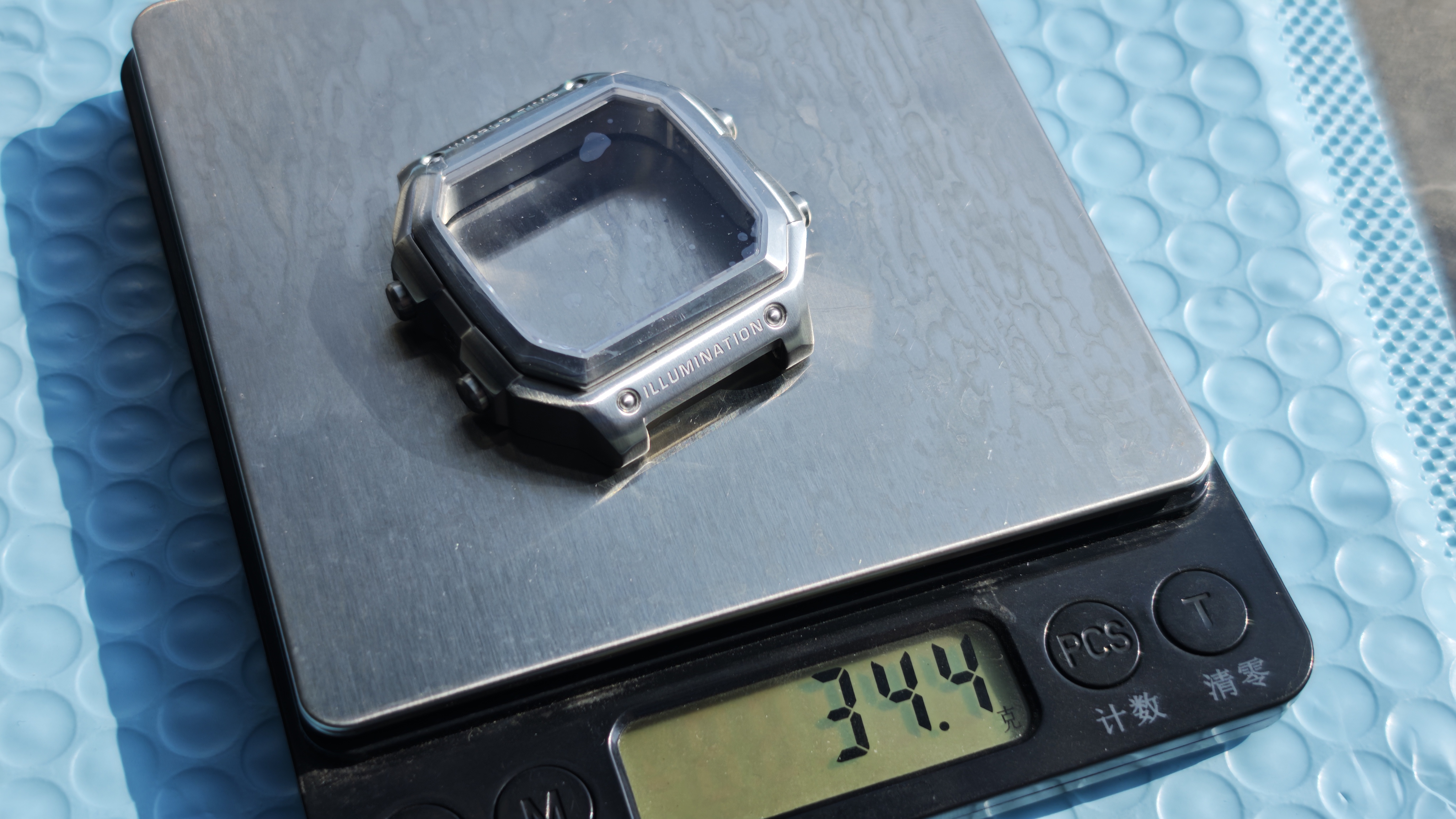

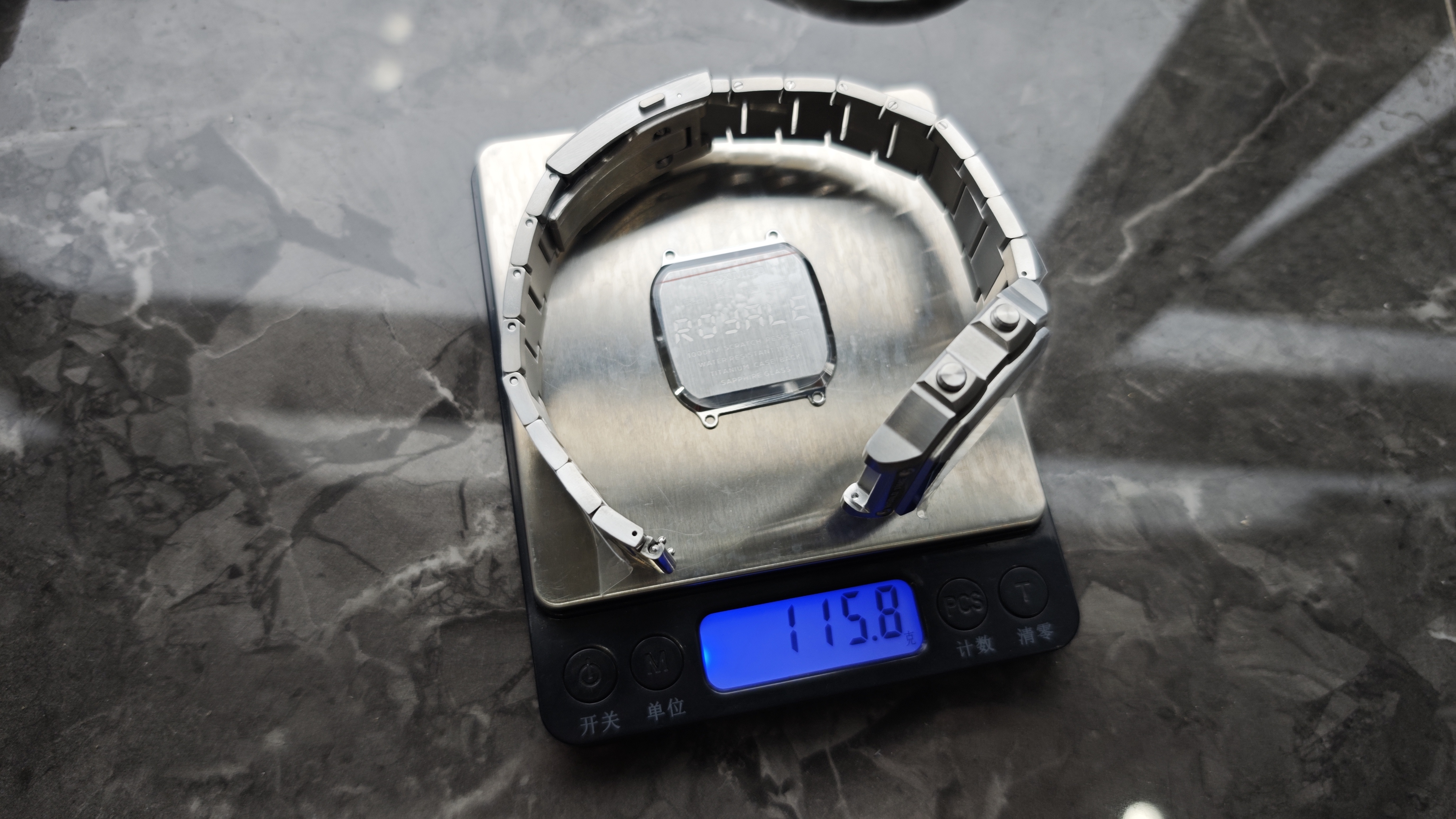

- Case & Caseback Weight: 34.4g & 6.4g
- Case Diameter: 42.2mm (Without Buttons)
- Thickness: 13mm (Before Assembly)
- Wrist Circumference(Rubber): 14cm - 21cm
- Wrist Circumference(Bracelet): 16cm - 24cm
- (Gen.2 Bracelets: 8mm Max Micro Adjustment)
- Individual Link Length: 1.05cm (3$ per piece)
- (Extra links purchase from this listing)
- Lug to Lug: 45mm
- Lug Width: 18mm
COMPATIBILITY:
- Casio AE-1200/1300 Series Modules
- Casio WS-1600/1700 Series Modules
- Casio DW-291H Series Modules
Attentions:

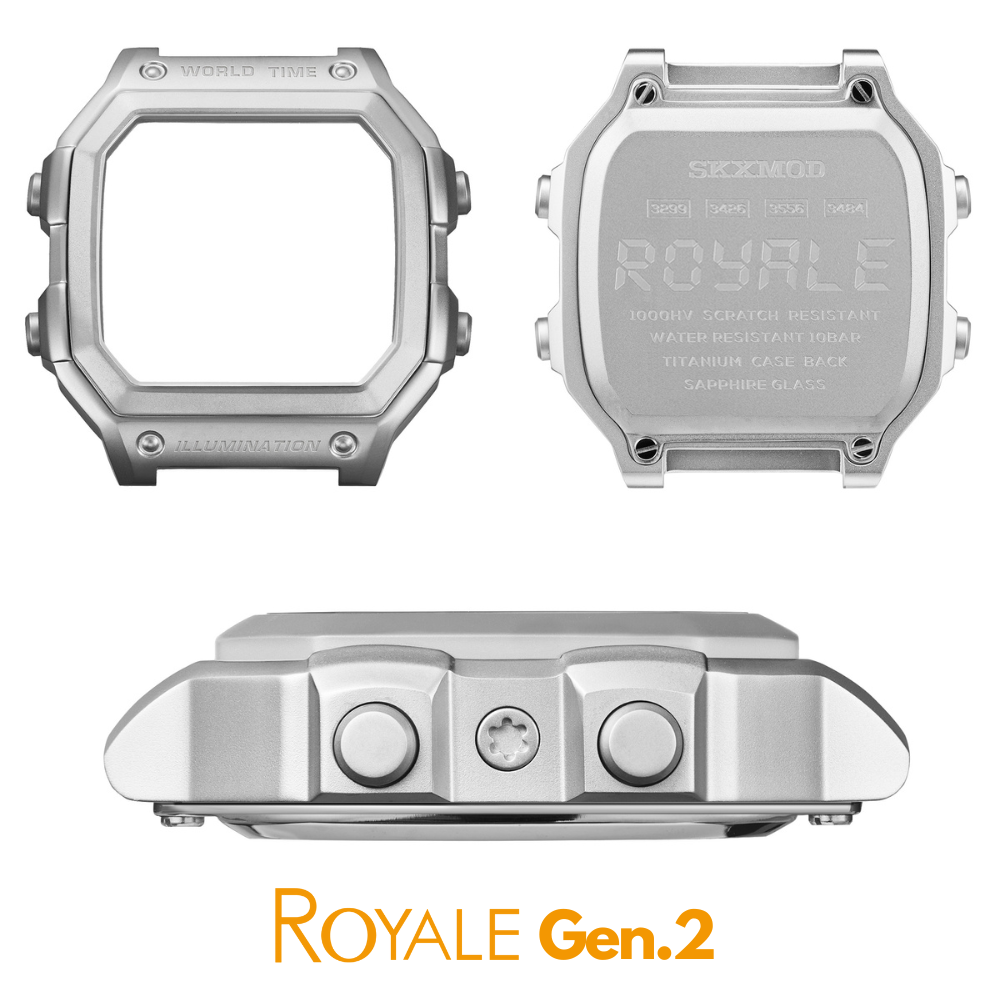

This case engraved lettering is now changed to "ILLUMINATION". And the beeping volume will be weaken for the full metal enclosure. Please purchase with discretion if you have concern of regards.
Gallery presented module and faceplate are not included. And unless stated otherwise, bracelet and pin buckle color follows the mid-case's. However, Matte Space Grey and RoseGold/Black colorway will use matte black buckle.
The harden surface only prevents daily minor bumps and scratches from forming. Does not mean it can withstand impact, puncture, slashes or substantial force in similar form. Also, because its unique properties, it will look a bit dimmer after long term using. For example, matte surface will be collecting dust during the wearing. Same to the matte bracelet.
There will be a pre-installed caseback and premium screws attached to the casing in the kit. As a prove that the pre-shipping pressure tests, screws and threads are passed and qualified. A measure to many customers' reckless installing without following our instructions. Therefore lead to broken screws and render the kit useless. Which we do not hold responsibilities. Please carefully uninstall it before inserting module in.
Similar on bracelet screws, please do not use excessive force. When you encounter certain resistance during the process of loosening. Please do not go further and strip the slot on top. Instead, slightly warm up the links to dissolve adhesive inside. Use push pin to gently nudge the other end of screws a bit by bit. Only then to continue the screw loosen maneuver.
There might be slight color difference among different accessory and case under same colorway. Due to many variating factor: manufacturing method, material, design and more. Also factor in that we make our own spray painting. Please take into consideration.
The term of "Gold" and "Silver" merely represents the colorway. Not meaning coated or made out of true precious metal. Necessary tools and parts are included in the packaging.
This product is not manufactured by Apple, Seiko, Casio or related brands.
It is made by SKXMOD.
A third-party product to accessorize aforementioned brands and more.
