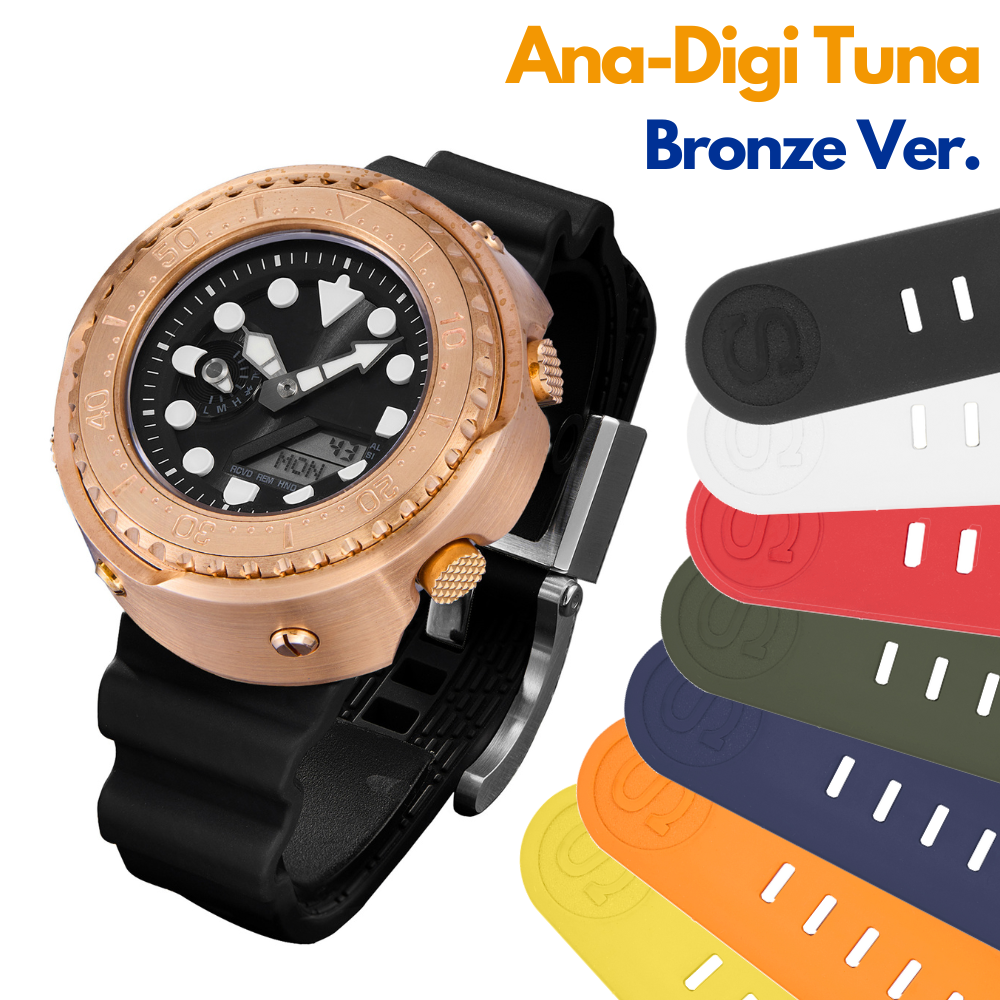

[SKXMOD] Ana-Digi Tuna Modding Kits | Bronze Version

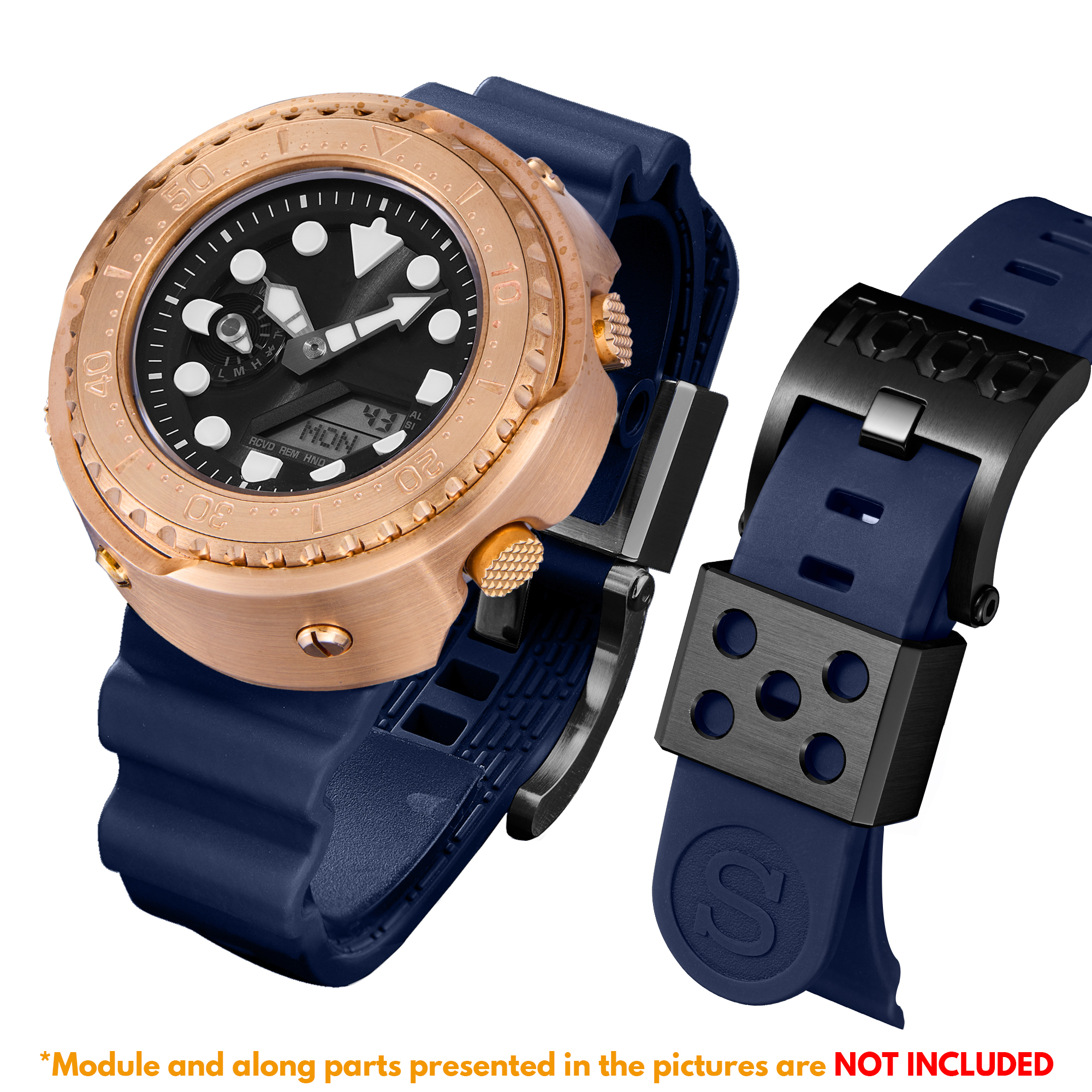

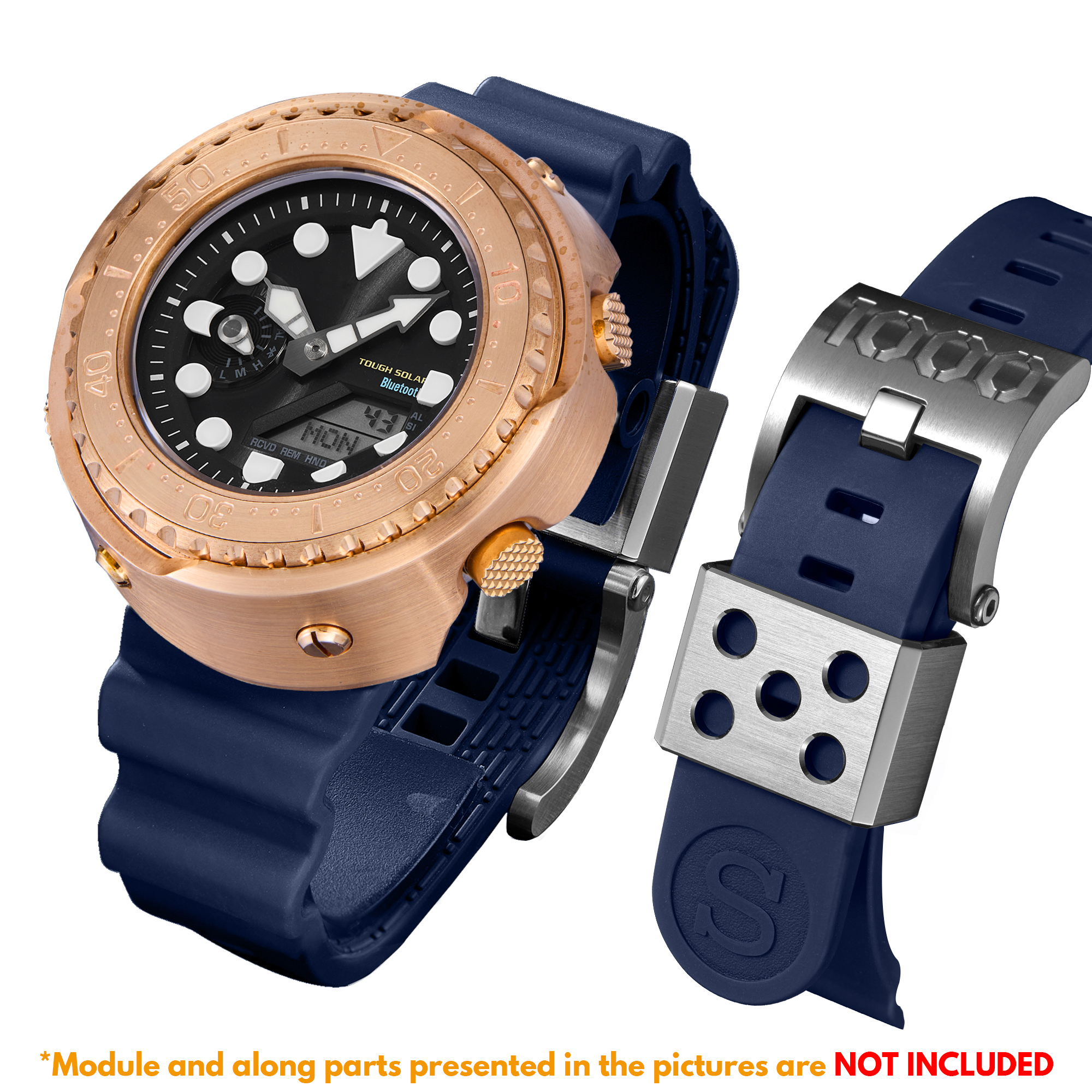

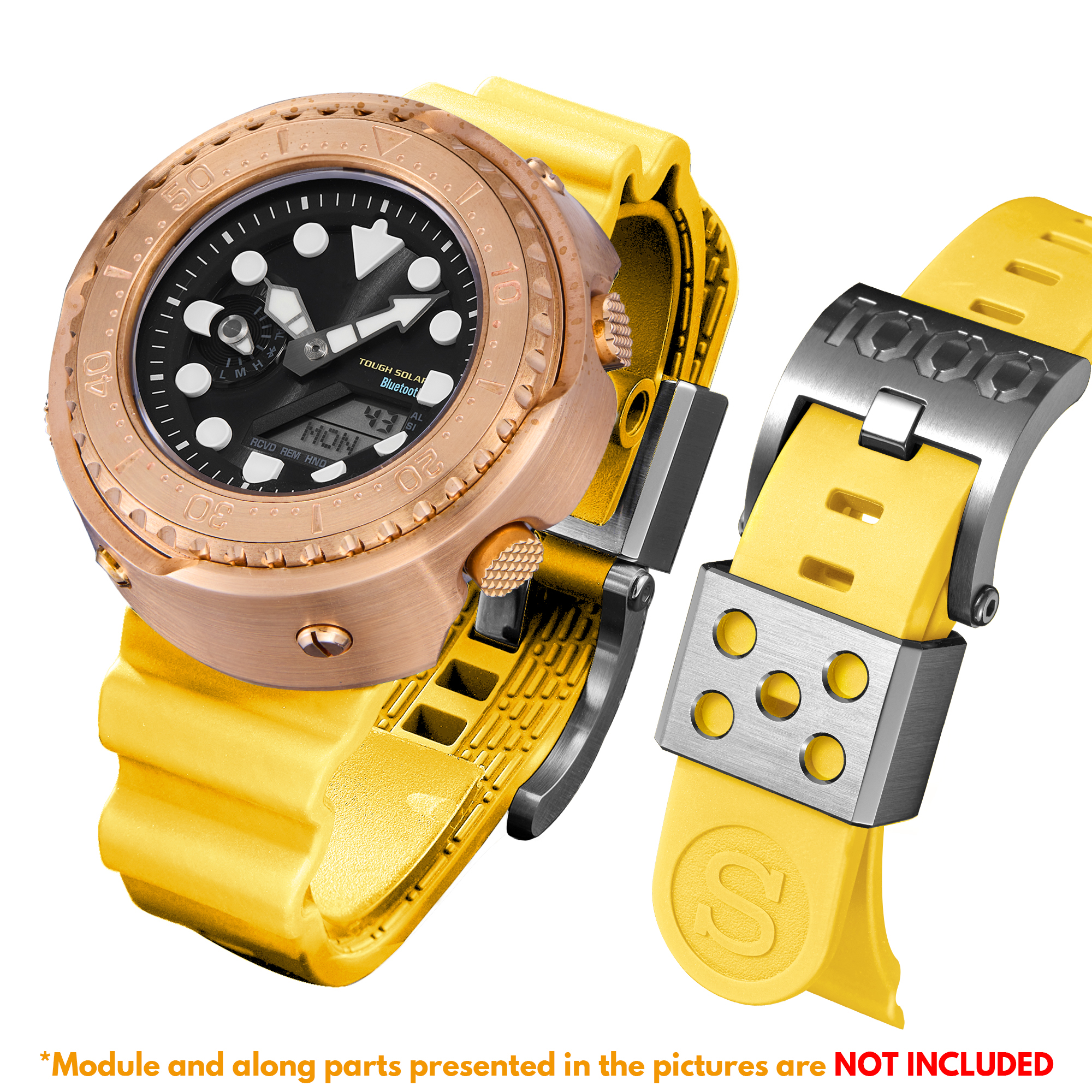

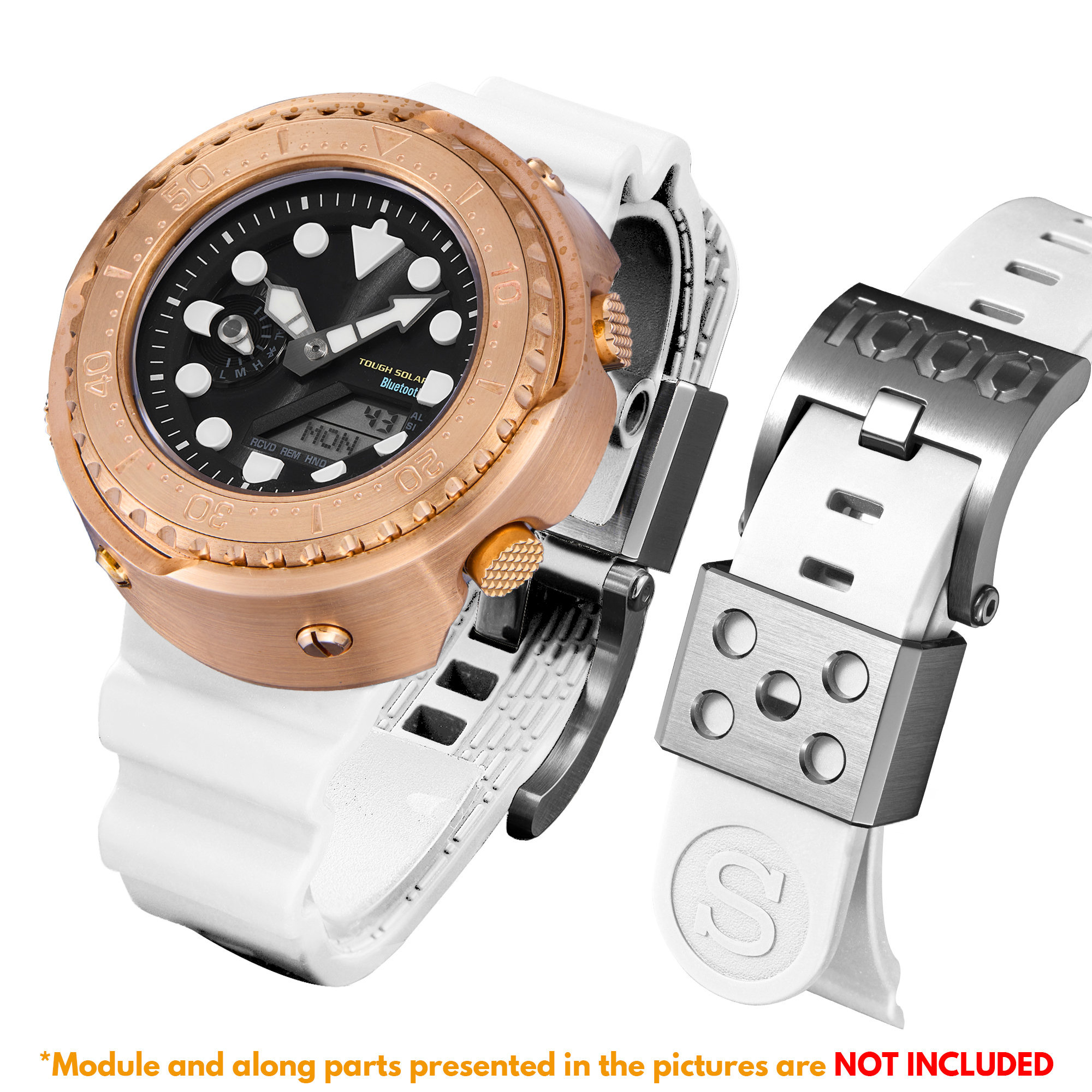

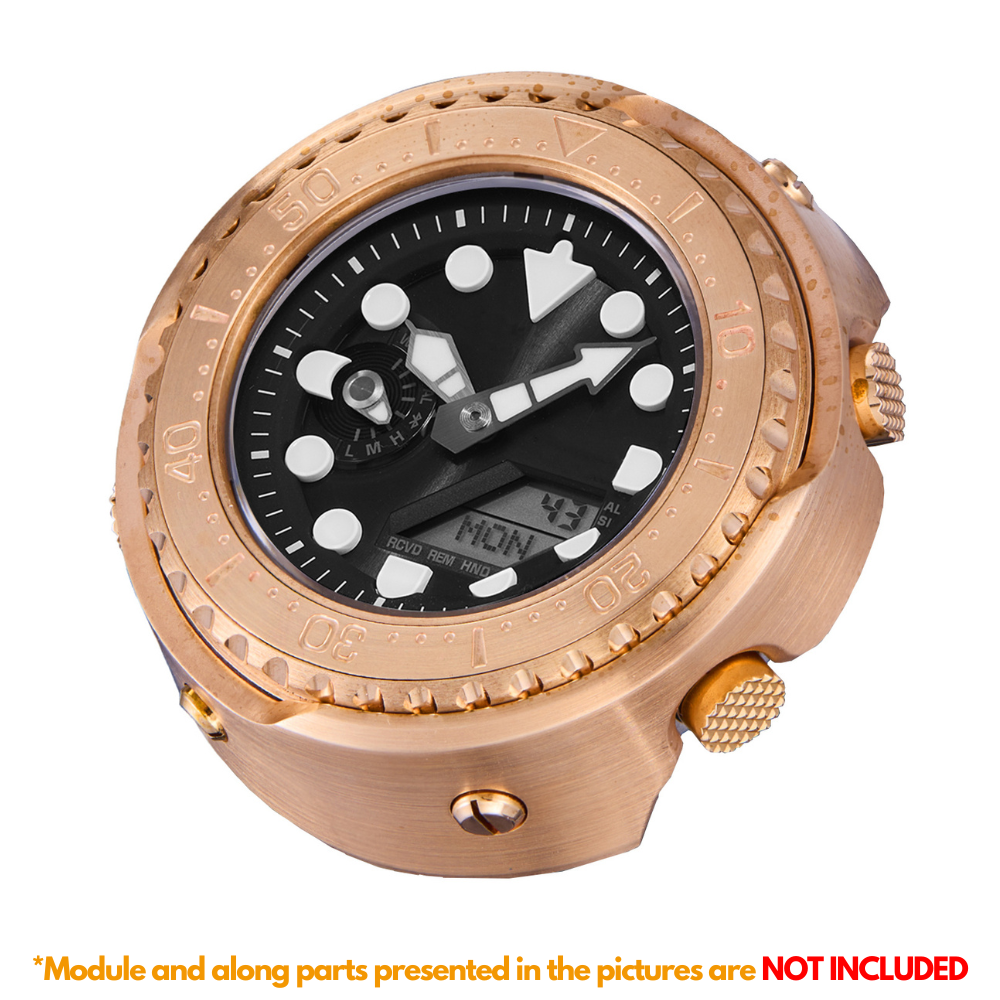

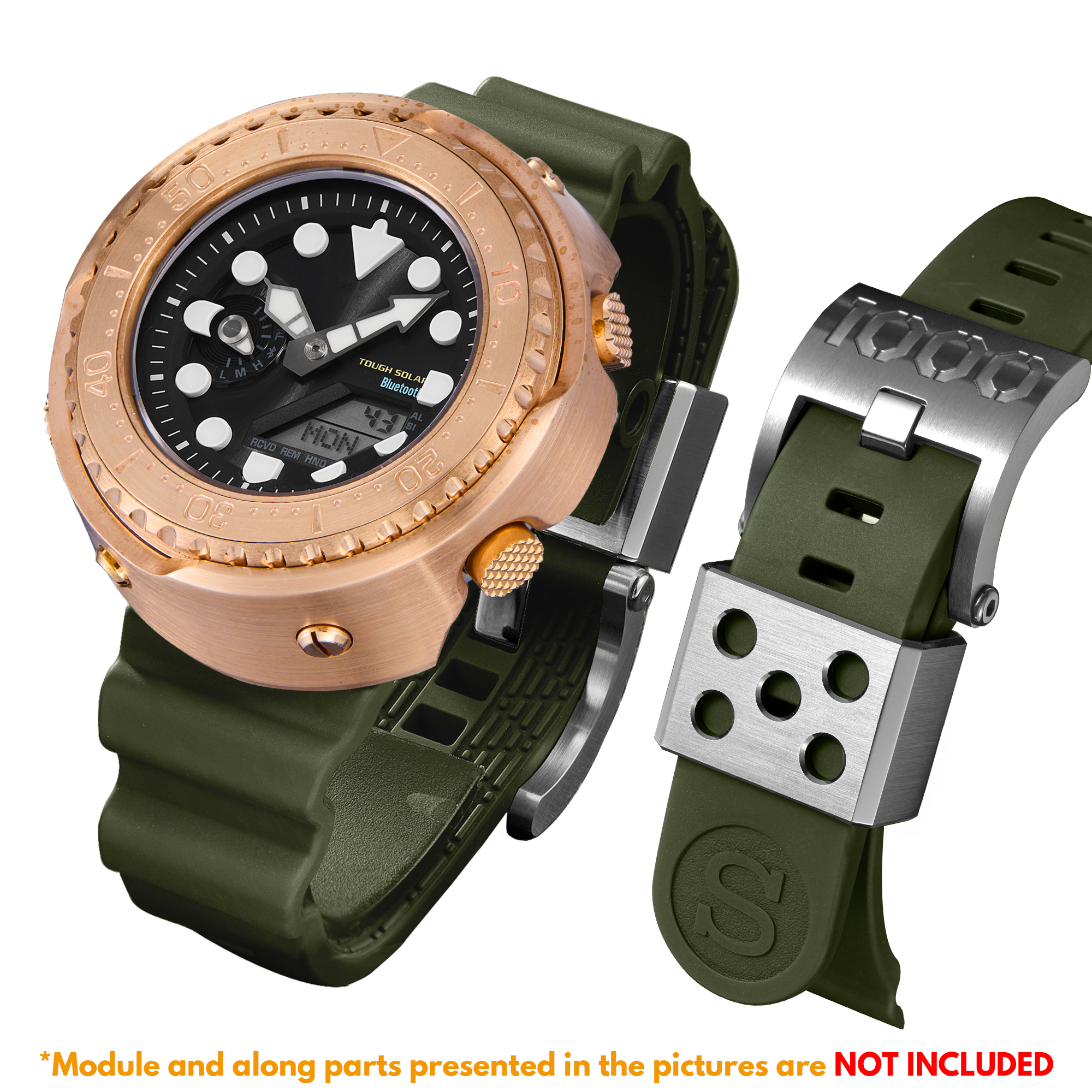

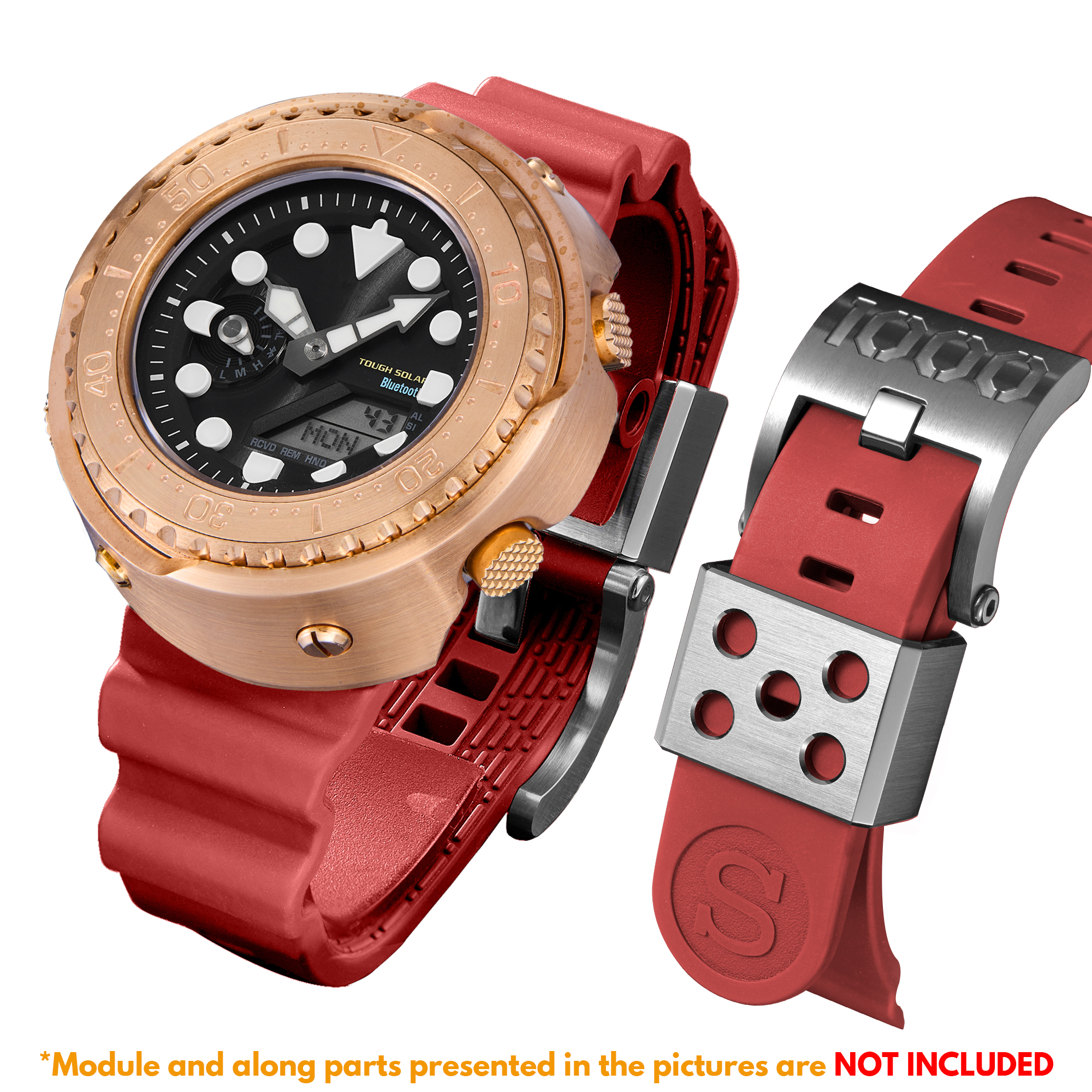

Module and along parts presented in the pictures are NOT INCLUDED

CLICK TO SEE PURCHASHING REMINDERS

CLICK TO SEE DIGITAL MANUAL

          DEMONSTRATION

          COMPATIBILITY

• Casio GA-2100/GA-2110 Series
• Casio GMA-S2100 Series
• Casio GA-B2100 Series
• Casio GM-2100 Series
• Casio GBM-2100 Series

GMA-S Variant, if using all original Casio parts. Meaning chapter ring, hour marker, hands and dial. It will have a rim of crevice around the chapter ring. While comparing with other series after completing the build. It is not as full. But does not impact functionality. Only aesthetically.

GA and GMA-S original chapter rings also has an visible cut-out on 1 and 7 o'clock position. As an inevitable flaw from Casio's design, we suggest customers getting our version of upgraded ones. If you have strong concern of such.

Because Casio 2100 models are made differently and in many different series.

We provide different cases for them. And THEY ARE NOT COMPATIBLE WITH EACH OTHER.

The only multi-compatible casing is for both GM-2100 and GBM-2100 series.

Meaning this particular casing can house both GM and GBM models' modules.

Other three casing, for GA-2100/GMA-S2100/GA-B2100, are 1 to 1 compatible only.

Lastly, none of our modding kits are compatible to GM-B2100 series.

Therefore, PLEASE CHECK MODEL FIRST BEFORE PURCHASE!!!

          SPECS:

• FKM Rubber Source Supplier: Daikin Chemicals Japan

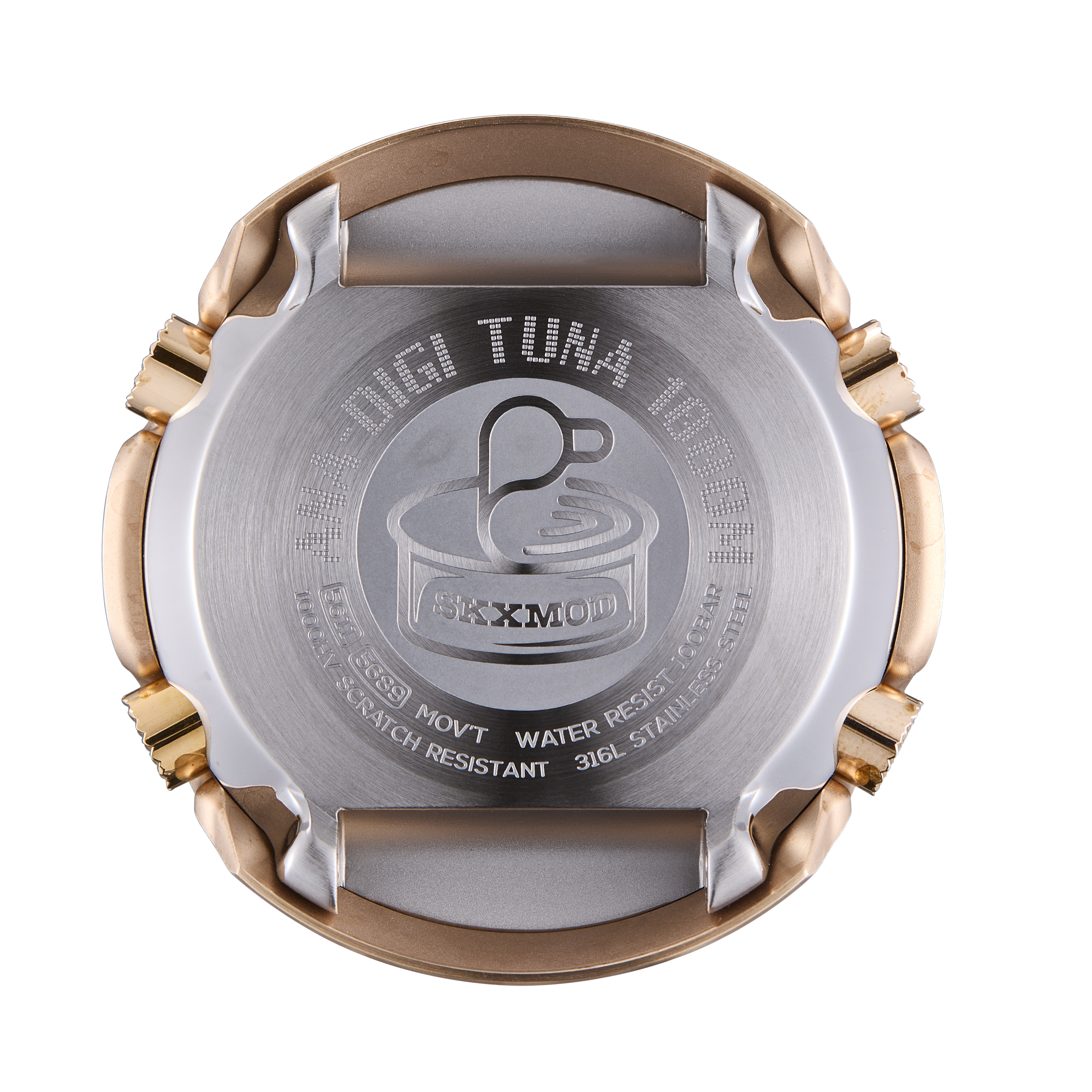

• Inner Case Material: 316L Stainless Steel or Grade 2 Titanium

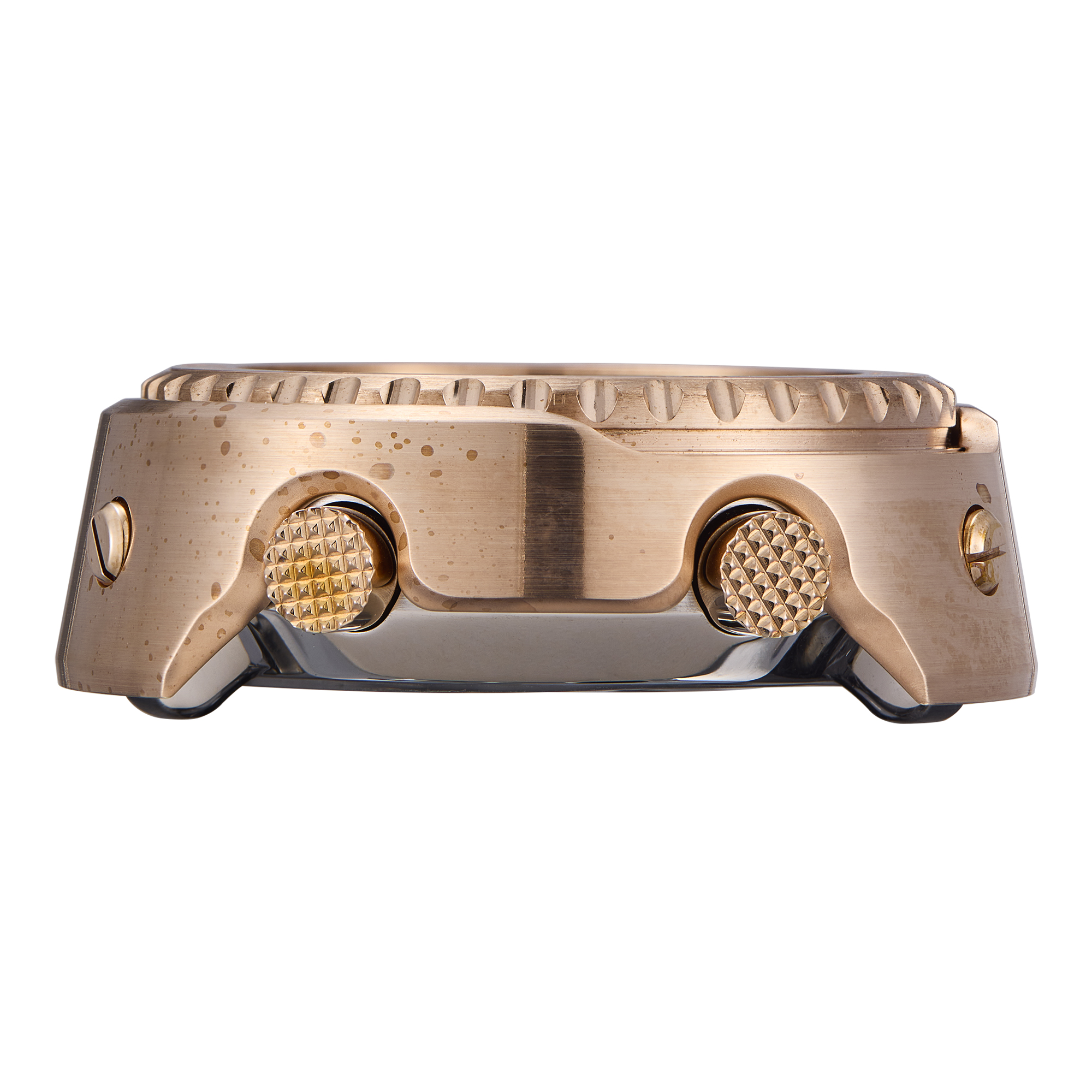

• (CNC milled CuSn8 Bronze Buttons Pre-installed on cases)

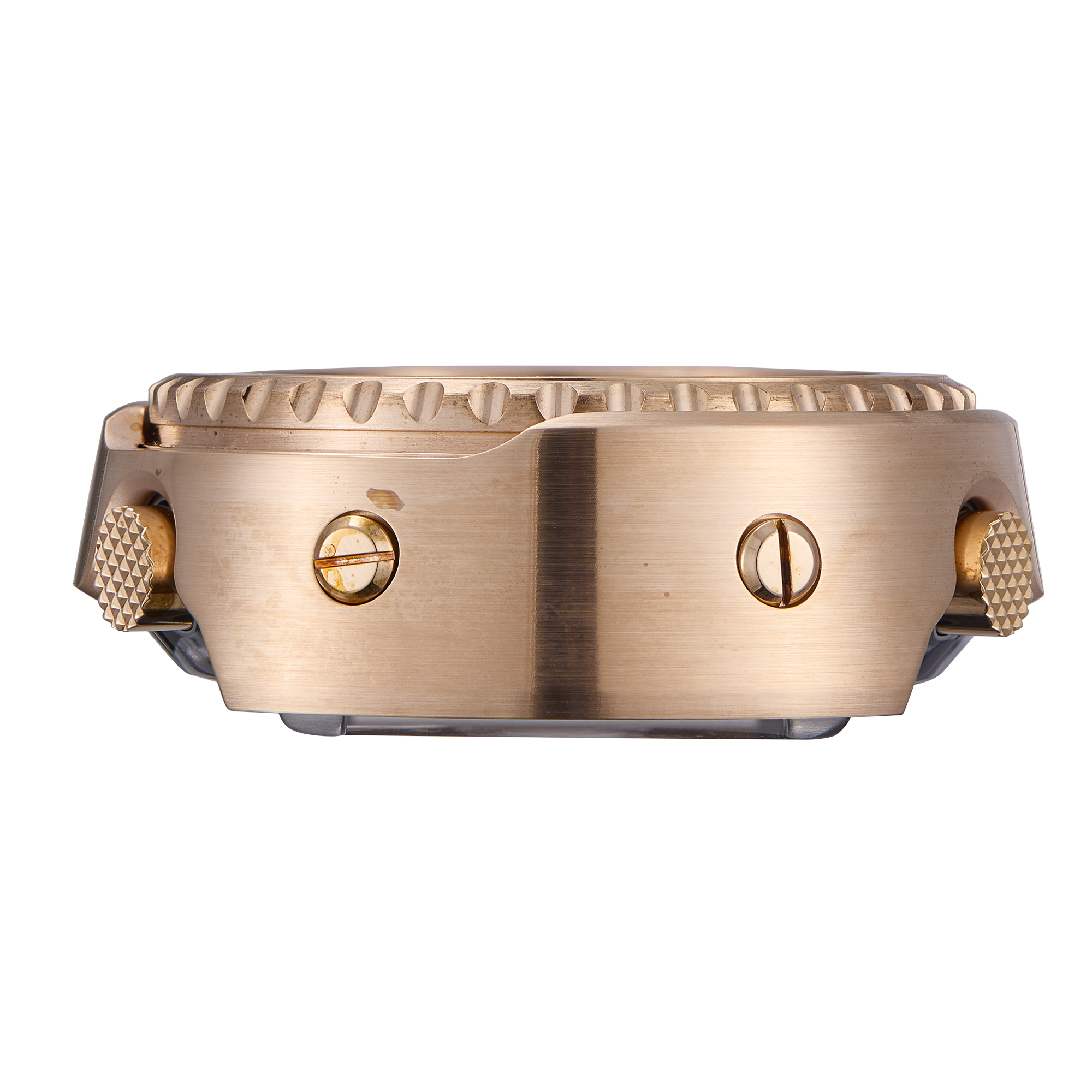

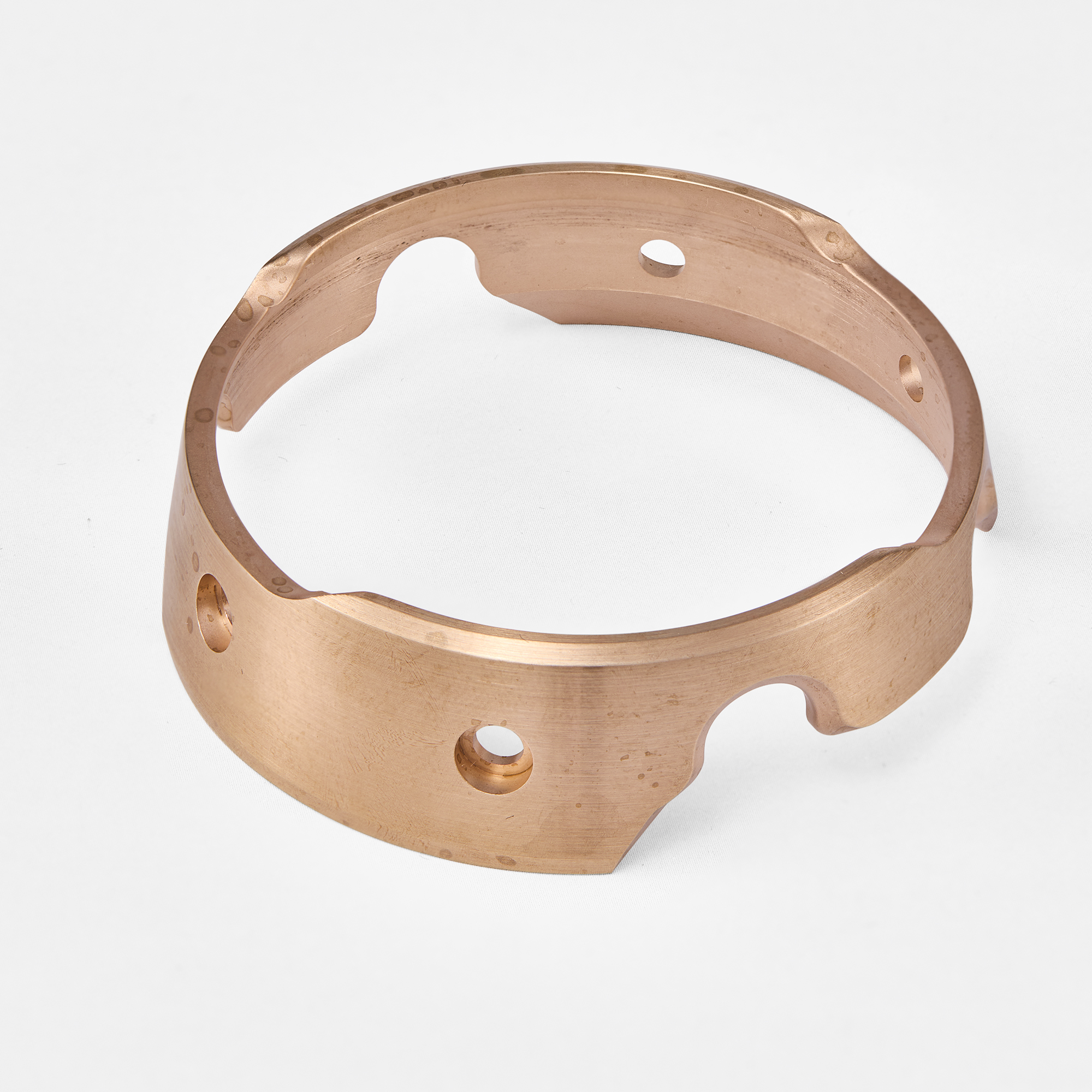

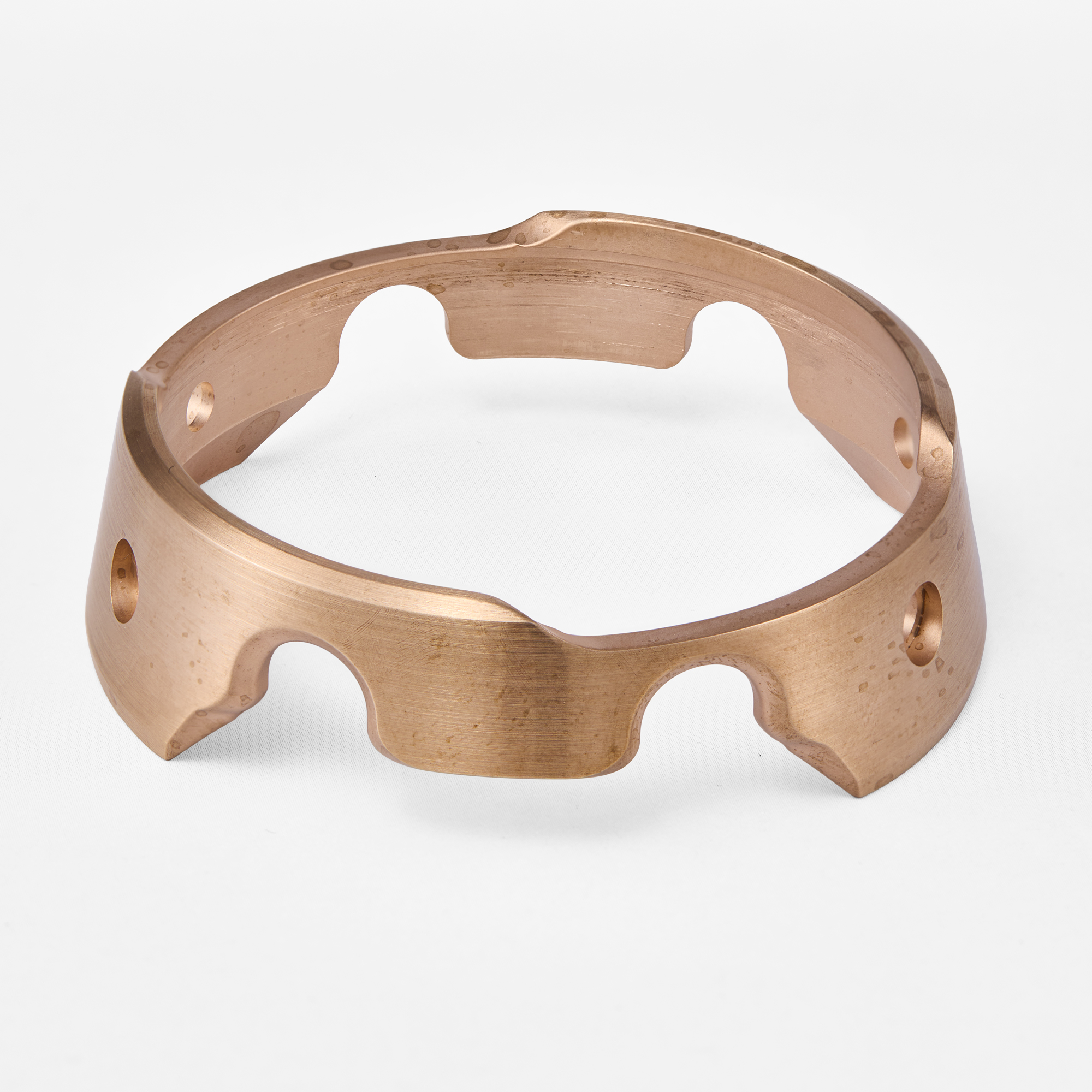

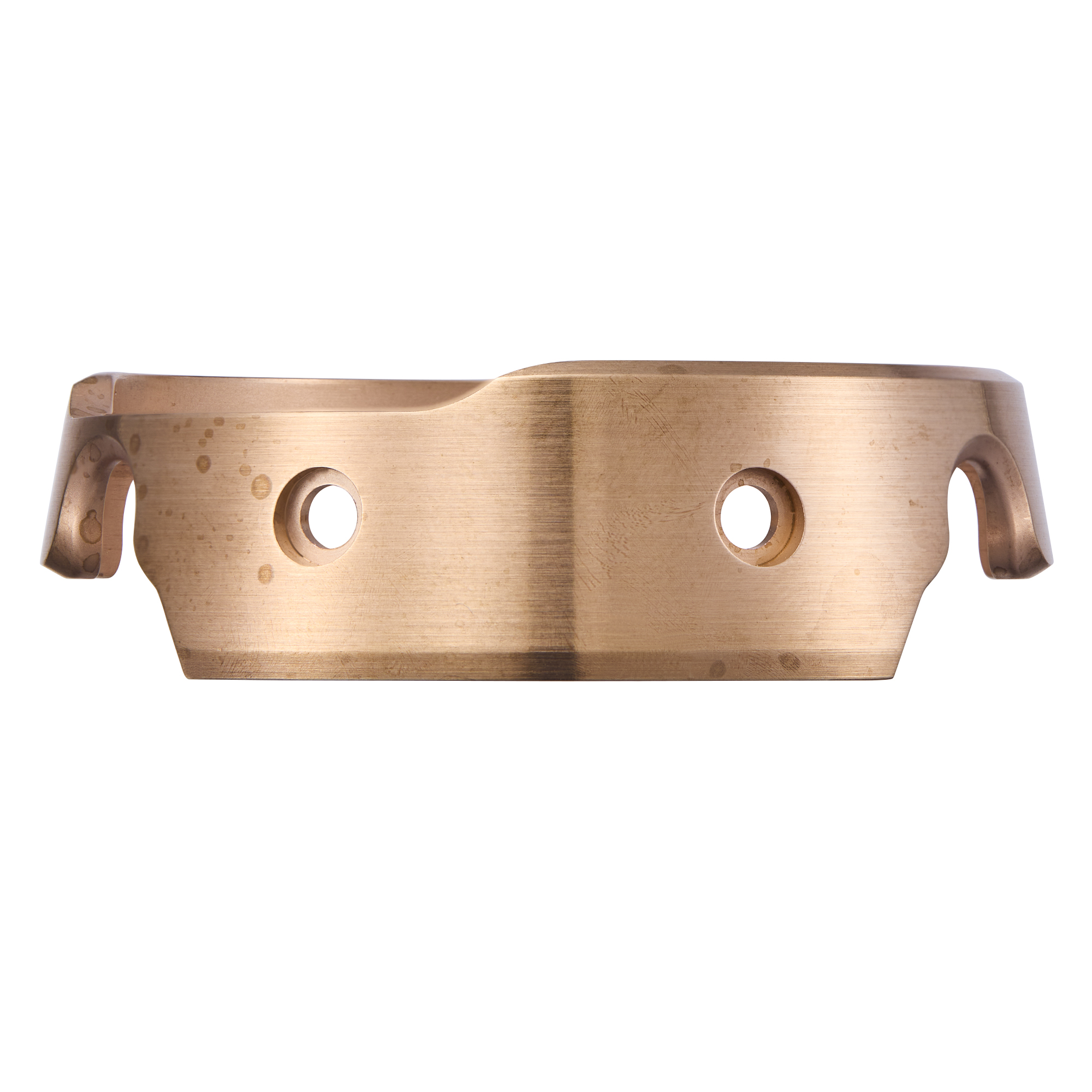

• Shroud Material: CNC milled CuSn8 Bronze

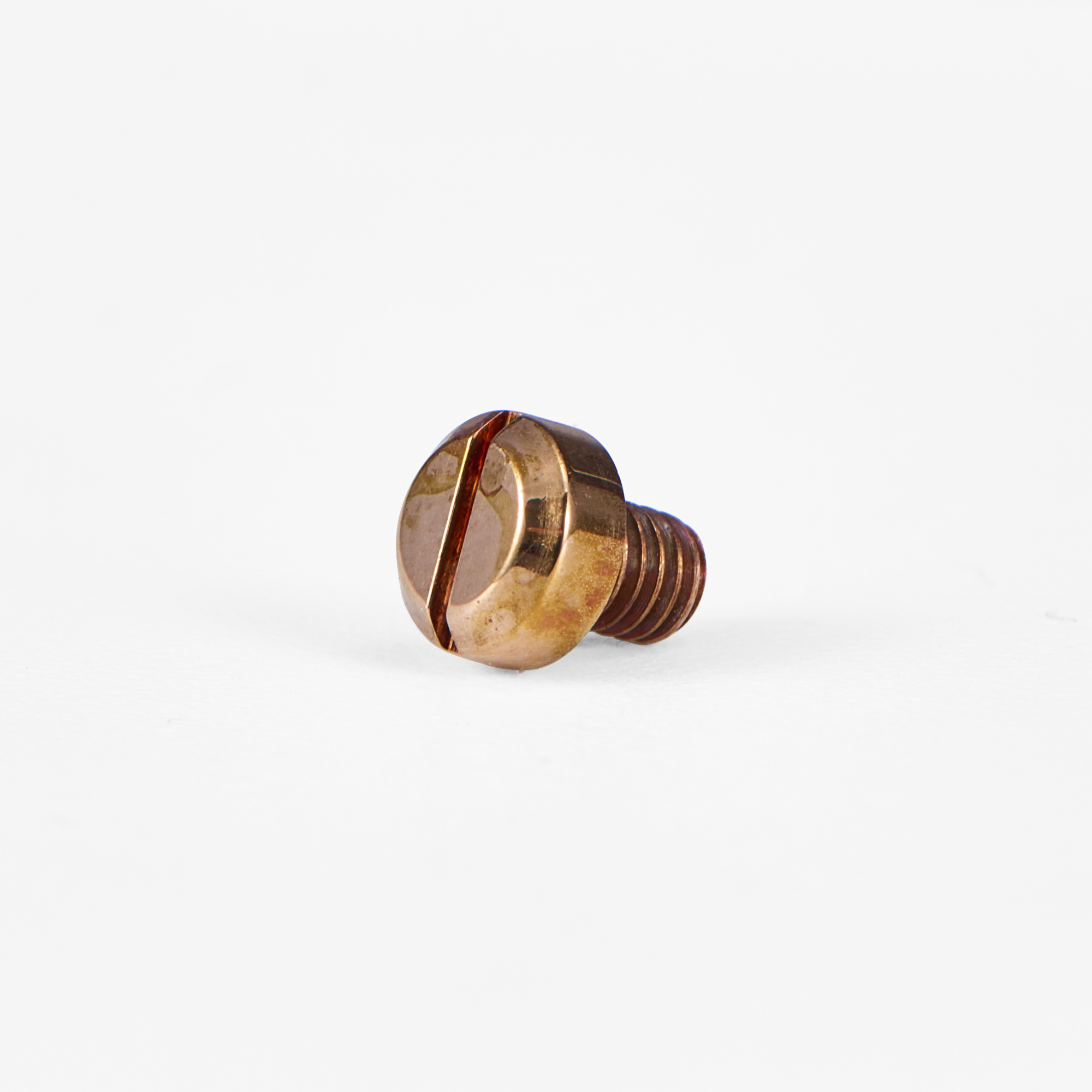

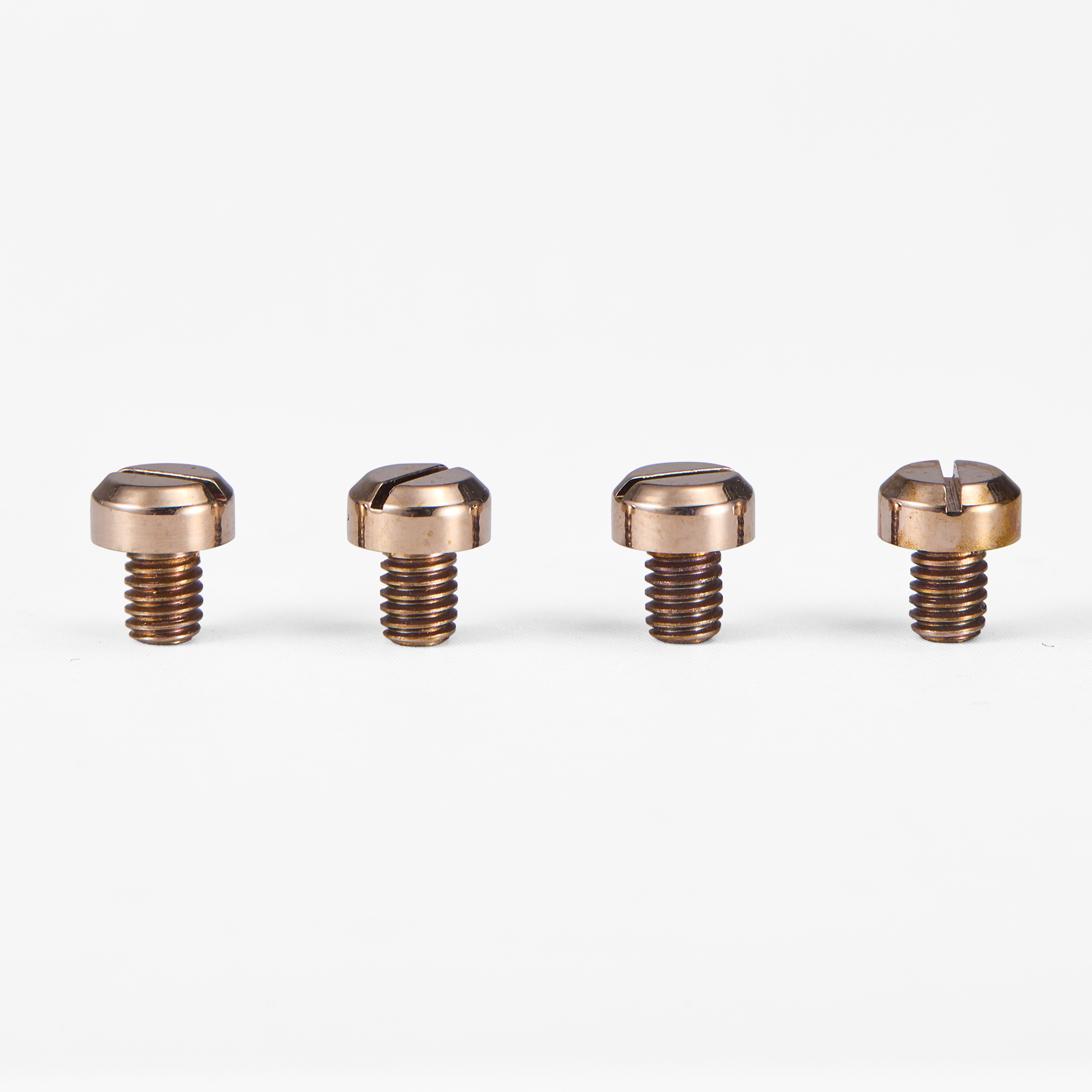

• Shroud Screws Material: CNC milled CuSn8 Bronze

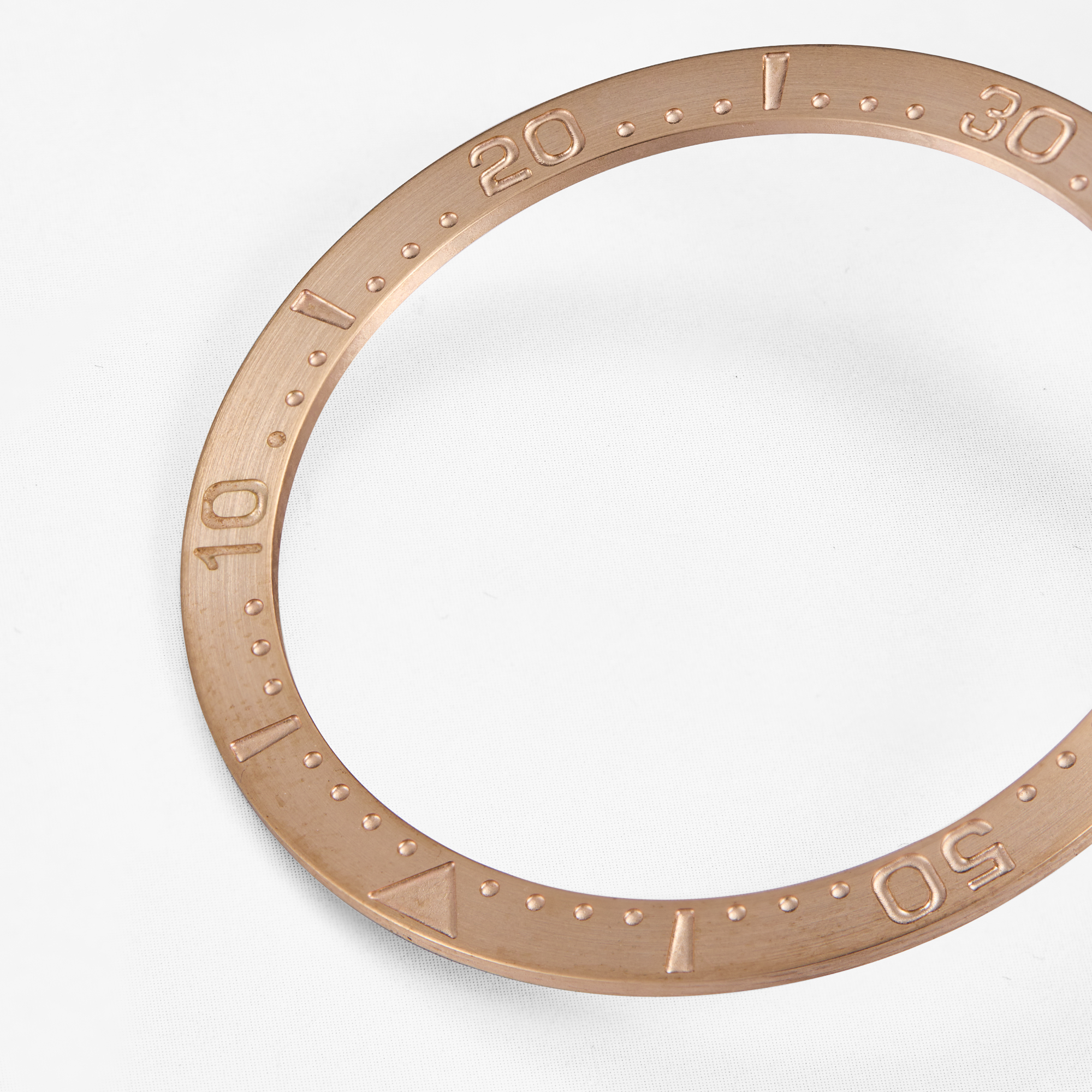

• Bezel Material: CNC milled CuSn8 Bronze
• Bezel Insert Material: Steel or Ceramic or Bronze
• Buckle Material: Colors and Material Follow Selected Inner Case
• Retainer Material: Colors and Material Follow Selected Inner Case
• Glass: Sapphire (AR coated on underside)
• Wrist Circumference (Rubber): 16cm to 22cm
• Bands Length: 137mm+74mm
• Case Diameter: 45.6mm (Without Shroud)
• Case Diameter: 51.8mm (With Shroud)
• Lug to Lug: 44.4mm (Without Shroud)
• Top to Bottom 53.2mm (With Shroud)
• Thickness: 16.4mm
• Lug Width: 22mm
• Water Resistant: 500M Machine Tested
• ROV Captured Data, Antarctica Deepsea
• Peak Record: 1510M
• DATA 1, DATA 2

Weights differently when paired with different parts. Hence only given bronze parts' weight. Rest can be viewed in their individual listings.

• CuSn8 Bronze Bezel: 9.6g
• CuSn8 Bronze Bezel Insert: 3.5g
• CuSn8 Bronze Shroud: 27.3g
• CuSn8 Bronze Screws: 0.4g * 4
• CuSn8 Bronze Buttons: 1.4g * 4

Depends on components you chose, parts containing will vary.

Our case does not always fit all model from above mentioned series.

Because on certain limited/special/collaboration edition model, Casio might do small modification.

Therefore, the general dimension of the inner carbon core is changed. Parts cannot fit into our case anymore.

GAE-2100 series and GM-2100MF-5A is sure won't fit. Please buy with cautions if you have such model.

Because the internal structure for different series are made differently.

We provided different option to choose from. And THEY ARE NOT COMPATIBLE WITH EACH OTHER.

Therefore, CHECK YOUR WATCH MODEL FIRST BEFORE PURCHASING!!!

FKM stands for Fluoroelastomer, which is a class of man-made rubber of great density but soft in touch. Our DAI-EL FKM rubber bands and many accompany accessory are specifically made by Daikin.

Able to offer exceptional resistance to wide range of industrial chemicals. Such as acids, oils, and fuels. With their strong carbon-fluorine bonds and low gas permeability, these materials are able to withstand harsh environments and maintain their integrity in low to high temperature conditions. Range from -45 °C to +204 °C.

Most importantly, resistance to oil and sweat in consumer grade product such as this. Soft, flexible, non-reactive materials which will not degrade in long term usage.

Attentions:

Although modding kit we have got similar dimensions.

Yet the internal structures are entirely different to fit different model.

Hence, please check for your model thoroughly before purchasing.

This listing only contains two main items: case assembly and rubber band(optional).

That you can choose combinations upon those components freely.

For extra rubber band(s), please purchase them through the menu.

Unless stated otherwise, rubber band hardware follows selected inner case.

The beeping volume will be weaken severely for the full metal enclosure.

Please purchase with discretion if you have concern of regards.

Please avoid using chemical solution to accelerate patina forming and removing.

For it might deform or corrode the gaskets within buttons under accidental or improper procedures.

Or further more, ruining the bronze material permanently.

And in such sitaution, we are not responsible for the product's after-sales service.

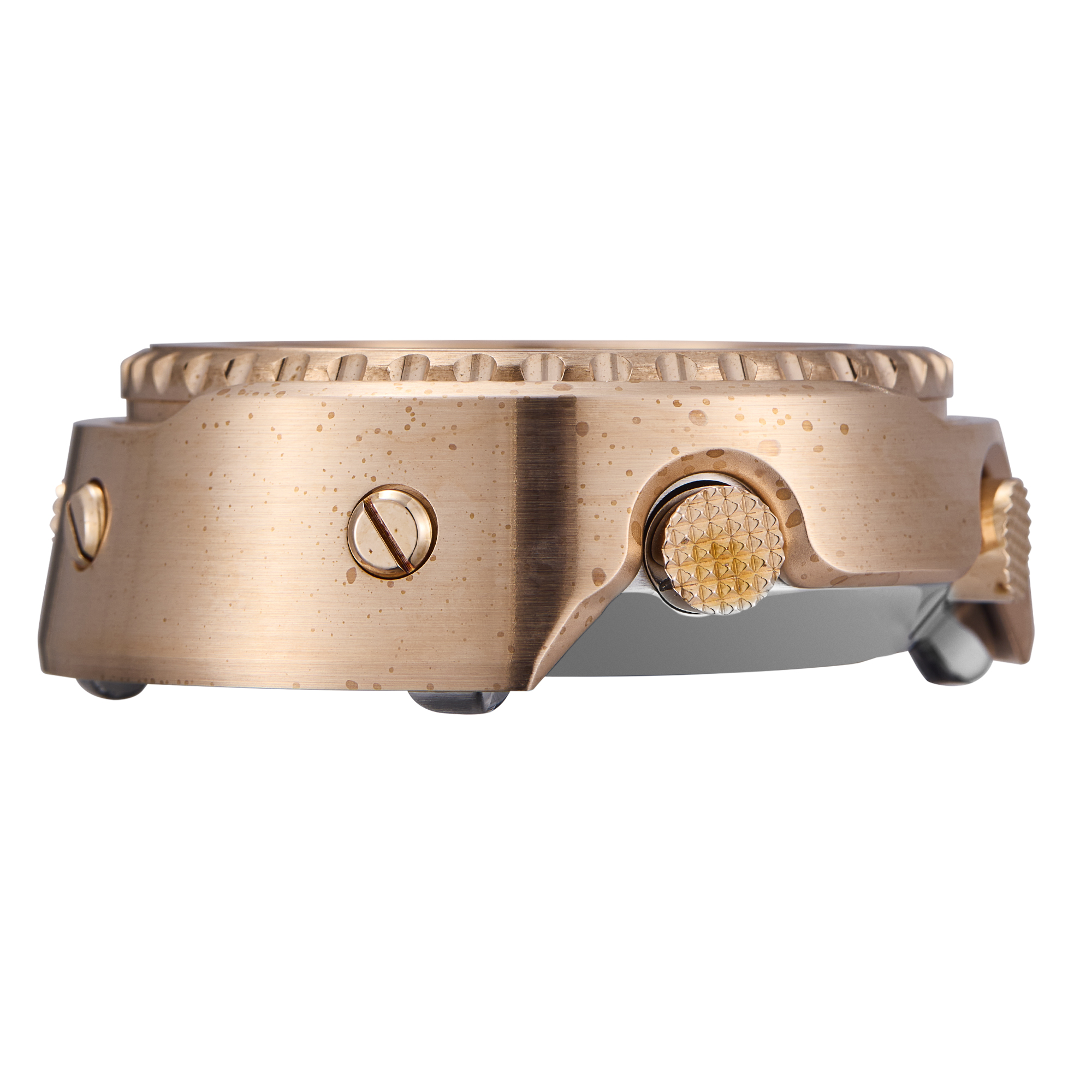

For possible patina formed during transportation.

You may try using coke or ketchup to let the case fully submerge.

Till the surface stain or marks are removed. Or to a degree you satisfied.

But don't forget sealing if off with installing caseback first.

Afterwards, wash off excess material under running water.

There is also a method using baking powder and lemon juice to create a paste.

Then use a toothbrush to brush off any patina you don't want.

To have a fresh start to cultivate new patina at any given moment.

Mind that this is not a defect, patina is a natural reaction for this particular case material.

And if you are worried or does not like the effect, please do not purchase.

Because it WILL have patina forming one way or another at certain point.

(There might be slight color difference among different accessory and case under same colorway.)

(Due to many variating factor: manufacturing method, material, design and more.)

(Also factor in that we make our own spray painting. Please take into consideration.)

(The term of "Gold" and "Silver" merely represents the colorway.)

(Not meaning coated or made out of true precious metal.)

This product is not manufactured by Apple, Seiko, Casio or related brands.

It is made by SKXMOD.

A third-party product to accessorize aforementioned brands and more.
